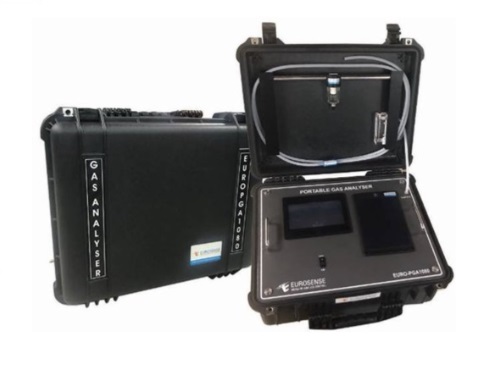

Portable Multi Gas Analyser
3 IR Gas Analyser System: We have advance 3 IR Gas Analyser for checking the furnace health at any point of time depending on the requirement. This also help us to comply CQI9.
- Sampling method extraction by internal pump(when necessary)
- Non-Dispersive infrared(NDIR), Dual wavelength avoids cross gas measurement
- Hydrogen Thermal conductivity
- Electrochemical cell/ Lambda Based
- Compensated signal 0-50 Deg. C(Note 1)
- Compensated signal 800-1200 mbar Pressure(Note 1)
- Front fitted Flow meter
- Accuracy and repeatability 4-1% of full scale
- Universal power supply 85-264 VAC
- Ethernet and USB
- Continuous data logging Archive through Data storage
- Pelican case
- Gloss Wool Filter, Inline Filter & Filter Element for Bowl Filter, All sensors with DISC Filter fitted
- Battery Backup (Rechargeable Battery)
- Available for Remote monitoring over LAN
- Data Archival in CSV and PDF through USB Port
- On-site calibration with certified sample Gas cylinder
- Cylinder Audit trail Feature
- Standard security based on operator, Supervisor & Engineer with user privileges
- Standard with required inline Filters, Pump and other accessories fitted inside
